RIC-2034D
Rated Voltage:3V~24V(Customizable upon request)
Appearance dimension:20mm×34mm
Applications: medical equipment and devices, healthcare products, automotive, robotics, and industrial automation
Motor specifications
| Model | RIC-2034D-090100 | RIC-2034D-120100 | |
|---|---|---|---|
| Voltage | V | 9 | 12 |
| No-load speed | rpm | 10000 | 9800 |
| No-load current | mA | 100 | 45 |
| Rated speed | rpm | 8761 | 8795 |
| Rated current | mA | 707 | 400 |
| Rated torque | g.cm | 51 | 41 |
| Stall current | A | 5 | 3.45 |
| Stall torque | g.cm | 420 | 400 |

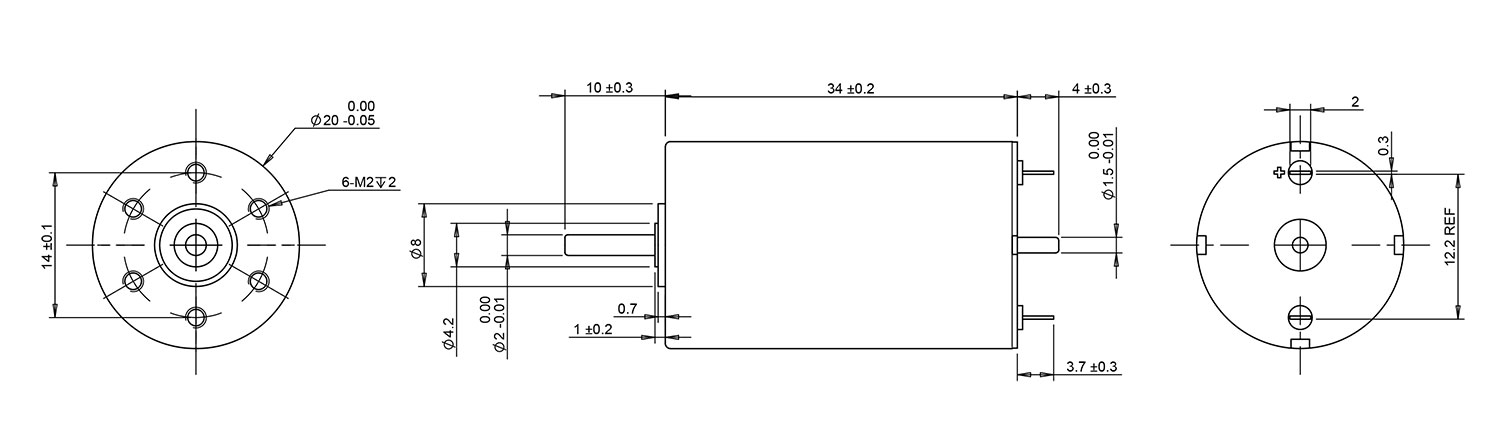

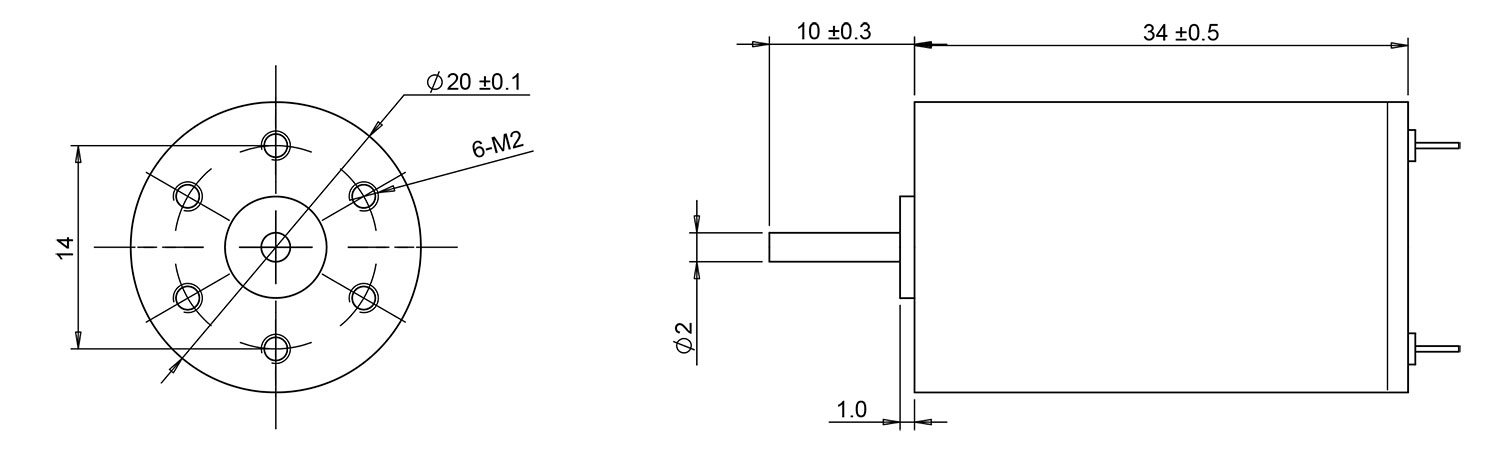

Outline Drawing
Remarks
Specifications for reference only.
Specifications, shaft dimensions, mounting holes, connectors, gears, and other components can be customized to meet customers’ specific requirements.
Prototype samples are available for customer evaluation and approval; lead time depends on final specifications.
