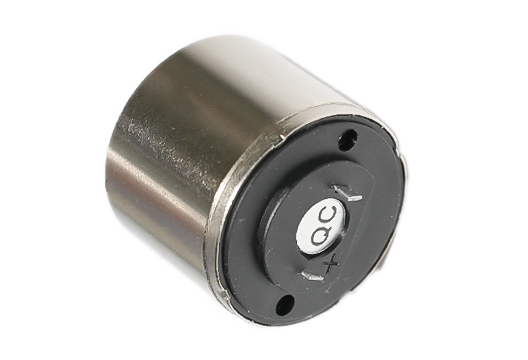

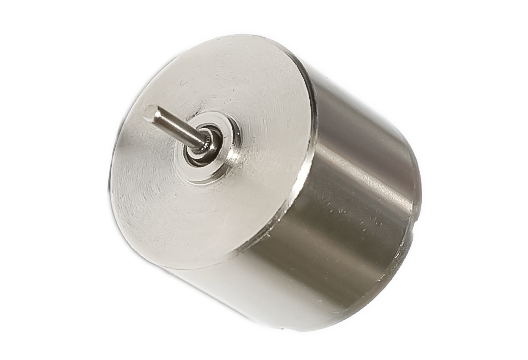

RIC-2016D
Rated Voltage: 3V~24V.
Compact 20×16mm coreless DC motor with outstanding power-to-weight ratio, fast response, low vibration, and stable performance for precision tasks.
Appearance dimension:diameter 20mm, body length 16mm .
Applications: tattoo machines,micro pumps,medical equipment and devices, healthcare products, automotive, robotics, and industrial automation.
Motor specifications
| Model | RIC-2016D-090800 | RIC-2016D-1201100 | RIC-2016D-120120 | |
|---|---|---|---|---|
| Voltage | V | 9 | 12 | 12 |
| No-load speed | rpm | 8200 | 10000 | 12000 |
| No-load current | mA | 15 | 15 | 16 |
| Rated speed | rpm | 7400 | 9100 | 10800 |
| Rated current | mA | 160 | 130 | 175 |
| Rated torque | g.cm | 15 | 13 | 15 |
| Stall current | A | 1.35 | 1.18 | 1.91 |
| Stall torque | g.cm | 140 | 132 | 189 |
Outline Drawing
Performance Curves
Remarks
Specifications for reference only.
Specifications, shaft dimensions, mounting holes, connectors, gears, and other components can be customized to meet customers’ specific requirements.
Prototype samples are available for customer evaluation and approval; lead time depends on final specifications.
