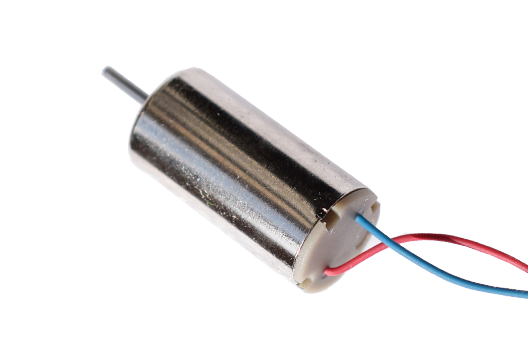

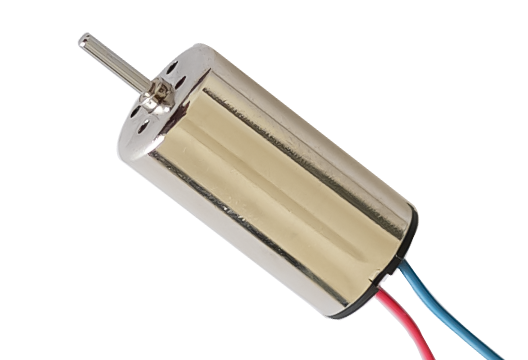

RIC-816D
Rated Voltage:3V-12V(customizable upon request)
Appearance dimension:8mm diameter, 16mm body length.
Ideal for N-gauge locomotives and upgrade kits, this 8×16 mm coreless motor delivers high RPM, high power density, ultra-lightweight construction and low-noise operation, enabling smooth and realistic low-speed performance in model railways and other precision micro-drive applications.
Motor specifications
| Model | RIC-816D-010160 | RIC-816D-120130 | RIC-816D-120150 | |
|---|---|---|---|---|
| Voltage | V | 3.4 | 12 | 12 |
| No-load speed | rpm | 40000 | 13500 | 15000 |
| No-load current | mA | 100 | 6 | 9 |
| Rated speed | rpm | 35000 | 11500 | 13000 |
| Rated current | mA | 750 | 30 | 30 |
| Rated torque | g.cm | 4 | 2.5 | 2.5 |
| Stall current | A | 5.2 | 0.185 | 210 |
| Stall torque | g.cm | 32 | 16.6 | 18.9 |
Outline Drawing
Remarks
Specifications for reference only.
Specifications, shaft dimensions, mounting holes, connectors, gears, and other components can be customized to meet customers’ specific requirements.
Prototype samples are available for customer evaluation and approval; lead time depends on final specifications.
