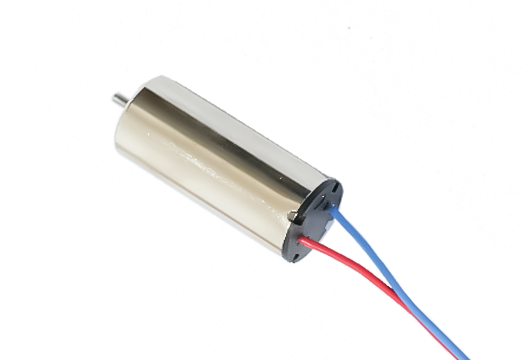

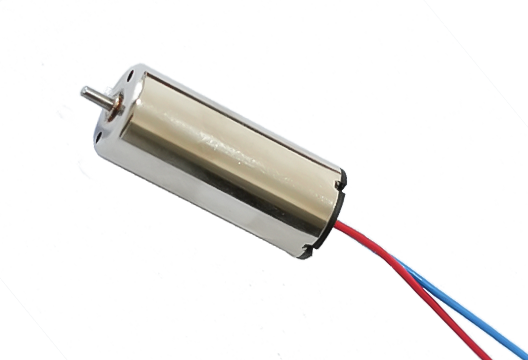

RIC-8520D
Voltage:1V-12V(customziable upon request)
Ultra‑light, high‑power micro motor engineered for very high RPM, low rotor inertia and quiet operation—delivering exceptional thrust‑to‑weight and rapid throttle response for micro FPV drones, Tiny Whoops and compact UAVs.
Application: mini aircraft, consume electronics，Remote Control Toys
Motor specifications
| Model | RIC-8520D-032490 | RIC-8520D-032430 | RIC-8520D-074500 | RIC-8520D-074540 | |
|---|---|---|---|---|---|
| Voltage | V | 3.2 | 3.2 | 7.4 | 7.4 |
| No-load speed | rpm | 49200 | 43000 | 50000 | 54000 |
| No-load current | mA | 340 | 270 | 146 | 180 |
| Rated speed | rpm | 42700 | 37500 | 44300 | 47000 |
| Rated current | mA | 2271 | 1837 | 1100 | 1247 |
| Rated torque | g.cm | 11 | 10.5 | 13 | 13.7 |
| Stall current | A | 15.1 | 12.5 | 8.2 | 8.6 |
| Stall torque | g.cm | 86 | 81 | 111 | 108 |
Outline Drawing
Remarks
Specifications for reference only.
Specifications, shaft dimensions, mounting holes, connectors, gears, and other components can be customized to meet customers’ specific requirements.
Prototype samples are available for customer evaluation and approval; lead time depends on final specifications.
