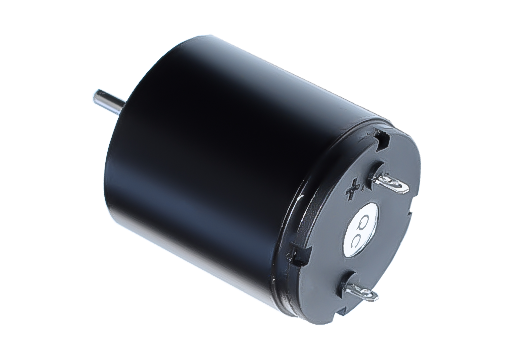

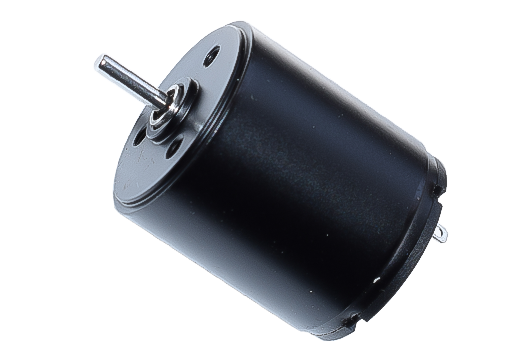

RIC-2225D
Rated Voltage: 3V -24V(Customziable upon request)
Appearance dimension: 22mm diameter, 25mm 32mm body length.
Applications: medical equipment and devices, electric tools, healthcare products, automotive, robotics, and industrial automation.
Motor specifications
| Model | RIC-2225D-121000 | RIC-2232D-129200 | |
|---|---|---|---|
| Voltage | V | 12 | 12V |
| No-load speed | rpm | 10000 | 9200 |
| No-load current | mA | 70 | 20 |
| Rated speed | rpm | 9000 | 8653 |
| Rated current | mA | 450 | 316 |
| Rated torque | g.cm | 30 | 37 |
| Stall current | A | 4 | 5 |
| Stall torque | g.cm | 450 | 620 |

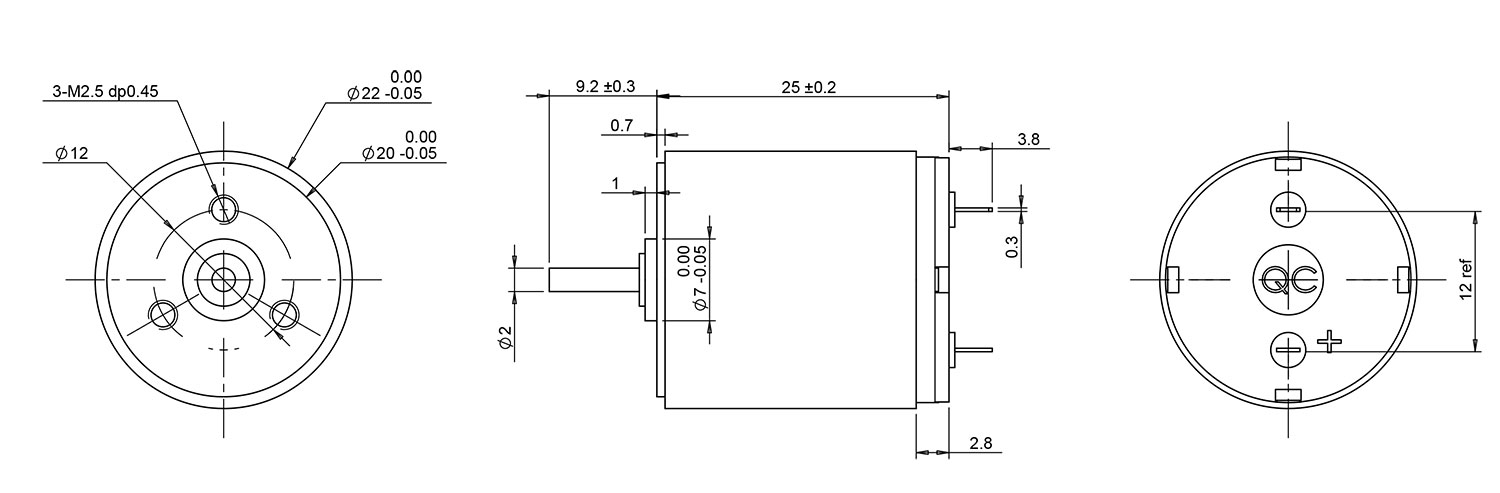

Outline Drawing
Remarks
Specifications for reference only.
Specifications, shaft dimensions, mounting holes, connectors, gears, and other components can be customized to meet customers’ specific requirements.
Prototype samples are available for customer evaluation and approval; lead time depends on final specifications.
