RIC-13GB1627
- Nominal voltage:3-24V.
- Small precise gear motor with high torque and low noise.
- Appearance size:diameter 15.5mm body length 37.7mm.
- Application:Models ,Toys,Medical Equipment ,Precise Instruments
Gearhead specifications
| Number of stages | 2 | 4 | 4 | 4 | 5 | 5 | 5 |
|---|---|---|---|---|---|---|---|
| Reduction Ratio | 1/3,1/7,1/10 | 1/16,1/17,1/20,1/30,1/35 | 1/50,1/63 | 1/70,1/86 | 1/115,1/150 | 1/210,1/250 | 1/360 |
| DIM L(mm) | 11 | 11 | 11 | 11 | 11 | 11 | 11 |
| Efficiency(%) | 72 | 52 | 52 | 52 | 44 | 44 | 44 |
| Allowable Rated Torque of GearBox(Kg.cm) | 0.2 | 0.3 | 0.1 | 0.5 | 0.6 | 0.7 | 0.8 |
Motor specifications
| Model | Voltage | No-load | Rated Load | Stall | |||||
|---|---|---|---|---|---|---|---|---|---|
| Speed | Current | Speed | Current | Torque | Output | Current | Torque | ||
| VDC | rpm | A | rpm | A | g.cm | W | A | g.cm | |
| FF-050SH-13120 | 6 | 13000 | 0.06 | 11000 | 0.3 | 10 | 1.03 | 1.6 | 62 |
| FF-050SH-12170 | 12 | 18380 | 0.068 | 15200 | 0.328 | 16 | 4.4 | 1.6 | 93.39 |

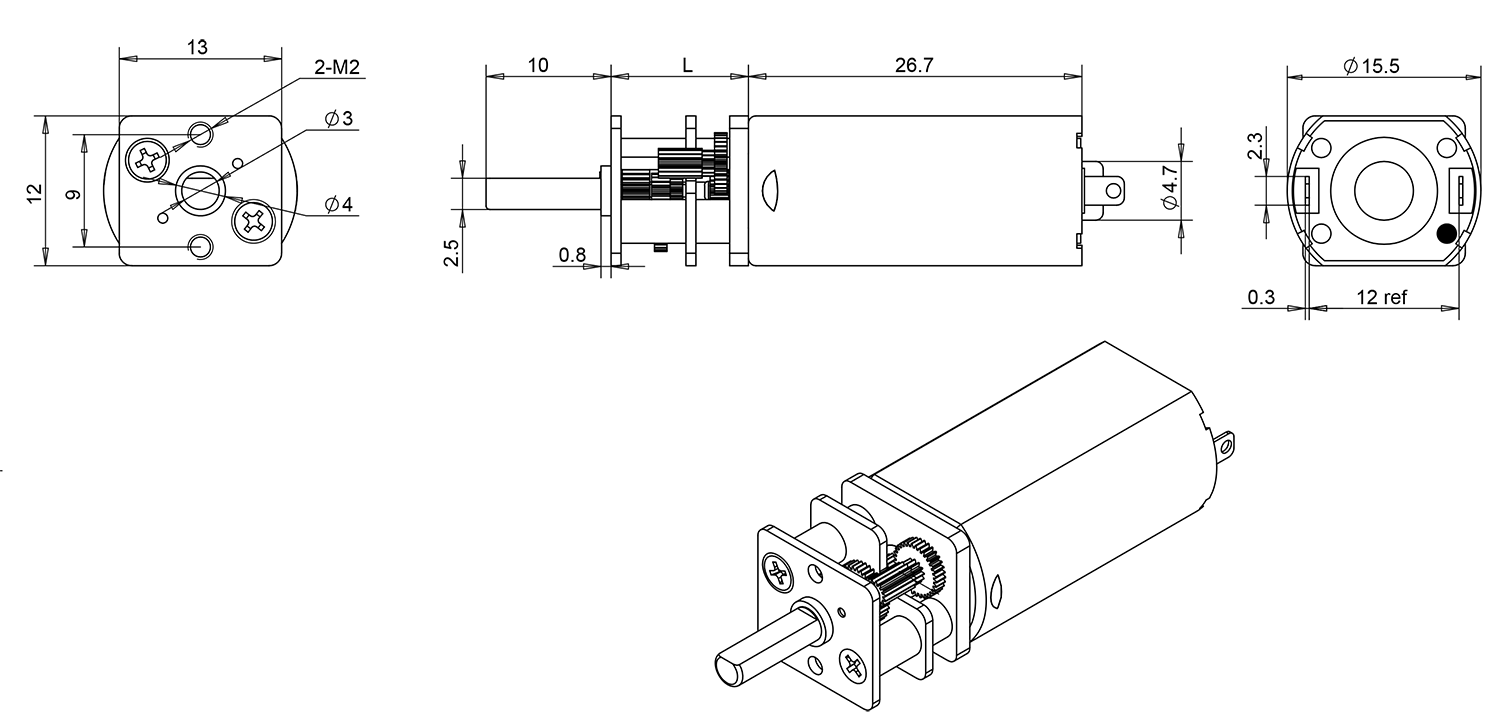

Outline Drawing
Remarks
Specifications for reference only.
The shaft dimensions and technical specifications (voltage, torque, speed, etc.) can be customized to meet customer requirements. The planetary gearbox can be paired with alternative micro DC motors to satisfy different torque and dimensional needs.
The output shaft speed equals the DC motor speed divided by the gearbox ratio.
The output torque equals the motor torque multiplied by the gear ratio and by the gearbox efficiency.
