RIC-12GB1215
- Rated voltage:3V-12V (Customize).
- Speed : 1rpm ~ 2000 rpm (Customize).

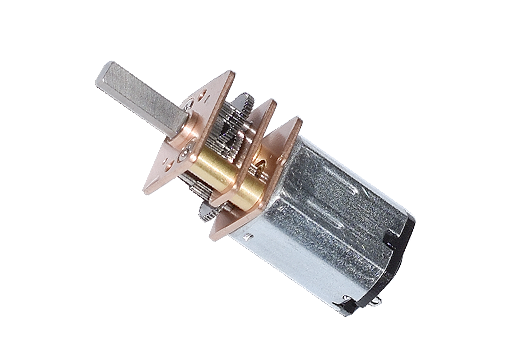

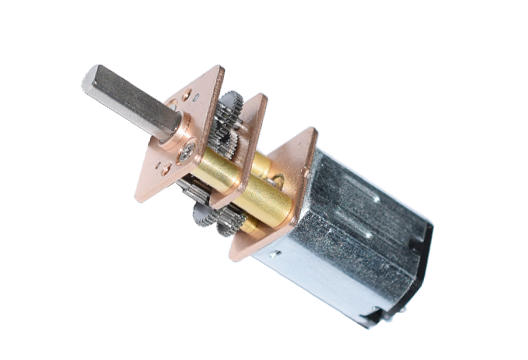

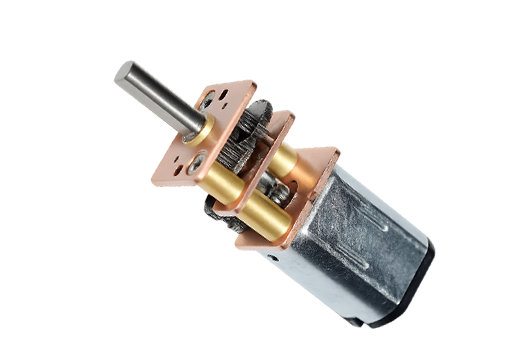

- Precision miniature gearbox with N20 dc motor.
- Apperance dimension:12mm diameter,24.2~27.2mm body length.
- Application:Models ,Toys,Medical Equipment ,Precise Instruments,etc.
- Options: Specification, Shaft dimension, Encoder, Connector;
Geared Motor Technical Data
Rated voltage | Reduction Ratio | 1/10 | 1/20 | 1/30 | 1/50 | 1/63 | 1/75 | 1/100 | 1/150 | 1/210 | 1/250 | 1/298 | 1/380 | 1/600 | 1/1000 |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
3V | Rated Torque(kg.cm) | 0.011 | 0.022 | 0.03 | 0.05 | 0.065 | 0.075 | 0.1 | 0.134 | 0.188 | 0.22 | 0.265 | 0.29 | 0.38 | 0.64 |
Rated Speed(rpm) | 619 | 309 | 206 | 118 | 98 | 82.5 | 62 | 41.2 | 29.5 | 25 | 20.8 | 16.2 | 10.2 | 6.1 | |
5V | Rated Torque(kg.cm) | 0.018 | 0.026 | 0.039 | 0.065 | 0.082 | 0.1 | 0.13 | 0.165 | 0.19 | 0.275 | 0.33 | 0.42 | 0.48 | 0.8 |
Rated Speed(rpm) | 1200 | 600 | 400 | 240 | 190 | 160 | 120 | 80 | 57 | 48 | 40 | 31 | 20 | 12 | |
12V | Rated Torque(kg.cm) | 0.016 | 0.033 | 0.045 | 0.078 | 0.1 | 0.112 | 0.156 | 0.2 | 0.277 | 0.33 | 0.395 | 0.5 | 0.58 | 0.96 |
Rated Speed(rpm) | 2100 | 1050 | 700 | 403 | 332 | 280 | 210 | 140 | 100 | 84 | 70 | 55 | 35 | 21 | |
L(mm) | 9 | 9 | 9 | 9 | 9 | 9 | 9 | 9 | 9 | 9 | 9 | 9 | 12 | 12 |
Motor Specifications
Model | Voltage | No-load | Rated | Stall | |||||
---|---|---|---|---|---|---|---|---|---|
Speed | Current | Speed | Current | Torque | Output | Current | Torque | ||
VDC | rpm | A | rpm | A | g.cm | W | A | g.cm | |
FF-N20-08220 | 3 | 8060 | 0.025 | 6180 | 0.085 | 2 | 0.12 | 0.275 | 8.4 |
FF-N20-09195 | 5 | 15000 | 0.03 | 12000 | 0.14 | 2.5 | 0.31 | 0.64 | 13.3 |
FF-N20-07280 | 12 | 25000 | 0.02 | 21000 | 0.1 | 3 | 0.1 | 0.6 | 20 |
Outline Drawing
Performance Curves
REMARKS
Shaft dimension and Specifications(voltage,torque,speed,etc) can be customized according to customer requirements.
This gearbox can be equipped with other micro dc motors if you have different torque and dimension requirements.
