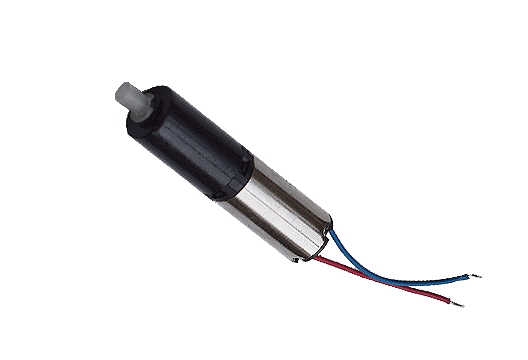

RIC-06GP612
- Rated Voltage: 3V ,4.5V;
- Miniature 6mm planetary gearbox provide 400gf.cm torque and more reliable.
- Gear ratio: 5:1 , 26:1 , 136:1 , 700:1
- Appreance dimension: 6mm diameter,17-25mm body length.
- Application:Medical Equipments, Consumer Electronic Products,Models,Personal Care Product,Automatic door lock,etc.
- Options: Motor length,Wire length, Specifications, Connector;
Gearhead specifications
| Number of stages | 1 | 2 | 3 | 4 |
|---|---|---|---|---|
| Reduction Ratio | 5.14 | 26 | 136 | 700 |
| DIM L(mm) | 4.7 | 7.5 | 9.4 | 12.2 |
| Efficiency(%) | 85 | 72 | 61 | 52 |
| Allowable Rated Torque of GearBox(Kg.cm) | 0.4 | 0.4 | 0.4 | 0.4 |
Motor specifications
| Model | Voltage | No-load | Rated Load | Stall | |||||
|---|---|---|---|---|---|---|---|---|---|
| Speed | Current | Speed | Current | Torque | Output | Current | Torque | ||
| VDC | rpm | A | rpm | A | g.cm | W | A | g.cm | |
| RIC-06GP612-5R | 3 | 5600 | 0.03 | 4400 | 0.11 | 3.5 | 0.1 | 0.45 | 17 |
| RIC-06GP612-26R | 3 | 1100 | 0.03 | 880 | 0.11 | 16 | 0.1 | 0.45 | 74 |
| RIC-06GP612-136R | 3 | 205 | 0.03 | 168 | 0.11 | 70 | 0.1 | 0.45 | 330 |
| RIC-06GP612-700R | 3 | 40 | 0.03 | 33 | 0.11 | 300 | 0.1 | 0.45 | 1500 |
Outline Drawing
Performance Curves
Remarks
Specifications for reference only.
The shaft dimensions and technical specifications (voltage, torque, speed, etc.) can be customized to meet customer requirements. The planetary gearbox can be paired with alternative micro DC motors to satisfy different torque and dimensional needs.
The output shaft speed equals the DC motor speed divided by the gearbox ratio.
The output torque equals the motor torque multiplied by the gear ratio and by the gearbox efficiency.
