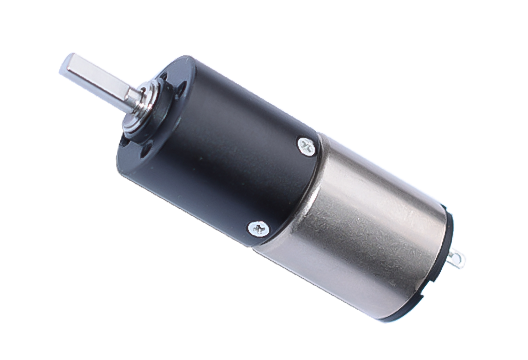

RIC-16GP1620
Voltage: 3~24V,
Motor Type Optional: coreless motor, brushed motor, brushless motor.
Specifications of Gearbox
| Number of stages | 1 | 2 | 3 | 4 |
|---|---|---|---|---|
| Reduction Ratio | 4，6 | 16，24，36 | 64，96，144，216 | 256，384，576，864，1296 |
| DIM L(mm) | 11.5 | 14.8 | 18.1 | 21.4 |
| Efficiency(%) | 85 | 72 | 61 | 52 | Allowable Rated Torque of GearBox(Kg.cm) | 6 | 6 | 6 | 6 |
Motor Specifications
| Model | Voltage | No-load | Rated | Stall | |||||
|---|---|---|---|---|---|---|---|---|---|
| Speed | Current | Speed | Current | Torque | Output | Current | Torque | ||
| VDC | rpm | A | rpm | A | g.cm | W | A | g.cm | |
| RIC-1620-120140 | 12 | 14000 | 0.03 | 11500 | 0.21 | 15 | 2 | 0.9 | 82 |
Outline Drawing
REMARKS
Shaft dimension and Specifications(voltage,torque,speed,etc) can be customized according to customer requirements.
This gearbox can be equipped with other micro dc motors if you have different torque and dimension requirements.
Geared motor speed = DC motor speed % reduction ratio
Output torque = DC motor torque*reduction ratio*gearbox efficiency
This gearbox can be equipped with other micro dc motors if you have different torque and dimension requirements.
Geared motor speed = DC motor speed % reduction ratio
Output torque = DC motor torque*reduction ratio*gearbox efficiency
