RIC-2230DT
Voltage:3V ~ 24V (optional)
Option: connector, gearbox.
Motor Specifications
| Model | RIC-2230DT-120100 | |
|---|---|---|
| Voltage | V | 12 |
| No-load Speed | rpm | 10000 |
| No-load Current | mA | 40 |
| Rated Speed | rpm | 9240 |
| Rated Current | mA | 450 |
| Rated Torque | g.cm | 50 |
| Stall Current | A | 6 |
| Stall Torque | g.cm | 700 |

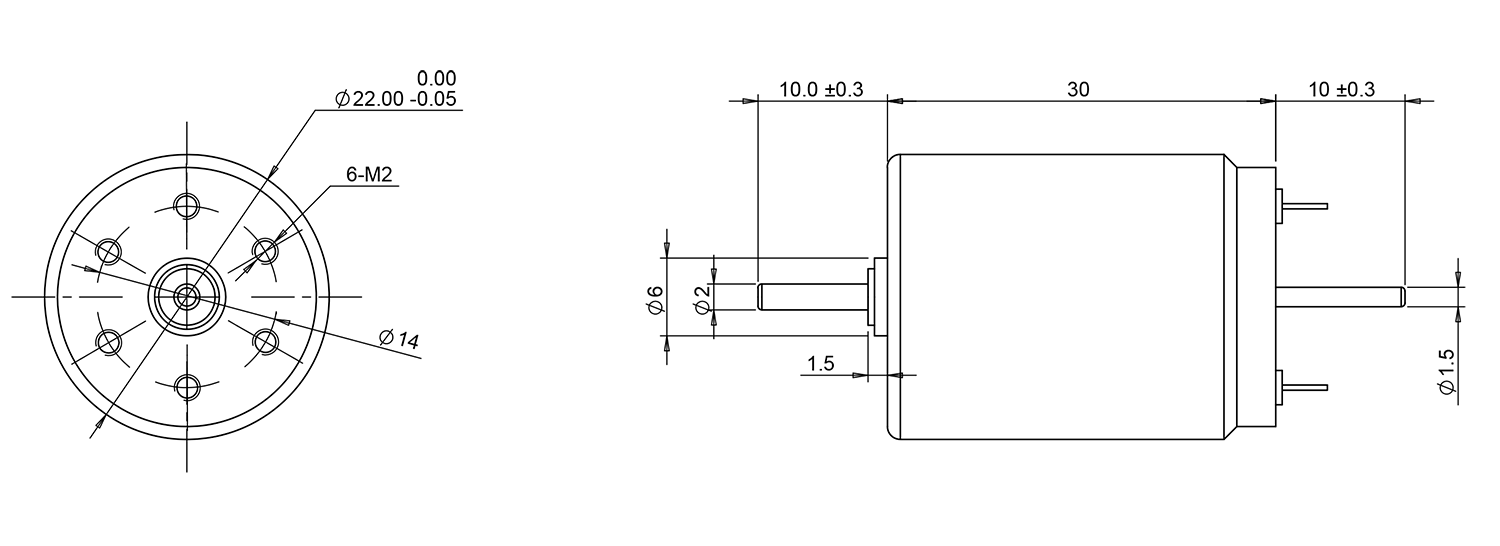

Outline Drawing
Performance Curves
