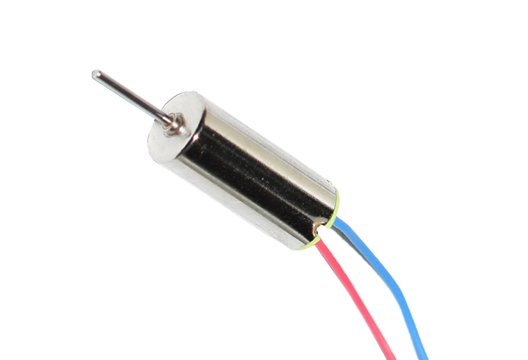

RIC-615D
Voltage 1.5V~ 24V (Customize)
Options: shaft length; wire length; wire connector; performance parameters;
Motor Specifications
| Model | RIC-615D-3136 | RIC-615D-120220 | RIC-615D-034380 | RIC-615D-034530 | |
|---|---|---|---|---|---|
| Voltage | V | 3.1 | 12 | 3.4 | 3.4 |
| No-load Speed | rpm | 36500 | 22000 | 38000 | 53000 |
| No-load Current | mA | 50 | 15 | 48 | 80 |
| Rated Speed | rpm | 30830 | 26000 | 39000 | |
| Rated Current | mA | 235 | 580 | 850 | |
| Rated Torque | g.cm | 1.53 | 4 | 4.5 | |
| Stall Current | A | 1.24 | 0.11 | 1.62 | 3.1 |
| Stall Torque | g.cm | 9.8 | 4.9 | 12.5 | 17.2 |
Outline Drawing
REMARKS
Specifications, shaft dimensions, screw holes, connector, gears and other components can be customized to meet customer specific requirements.
