RIC-1330BL
Voltage: 3V~24V(Customizable upon request)
Appearance Dimension: 13mm diameter, 30mm 32mm 36mm body length.
Motor specifications
| Model | RIC-1330BL-120100 | RIC-1330L-050100 | RIC-1332BL-060110 | RIC-1336BL-060110 | |
|---|---|---|---|---|---|
| Voltage | V | 12 | 5 | 6 | 6 |
| No-load speed | rpm | 10000 | 10500 | 11000 | 11000 |
| No-load current | A | 0.019 | 0.026 | 0.092 | 0.108 |
| Rated speed | rpm | 8600 | 9530 | 9450 | 9448 |
| Rated current | A | 0.175 | 0.256 | 0.56 | 0.7 |
| Rated torque | g.cm | 16 | 10.2 | 22.5 | 26.5 |
| Stall current | A | 0.92 | 2.5 | 3.4 | 4 |
| Stall torque | g.cm | 101 | 110 | 166 | 194 |

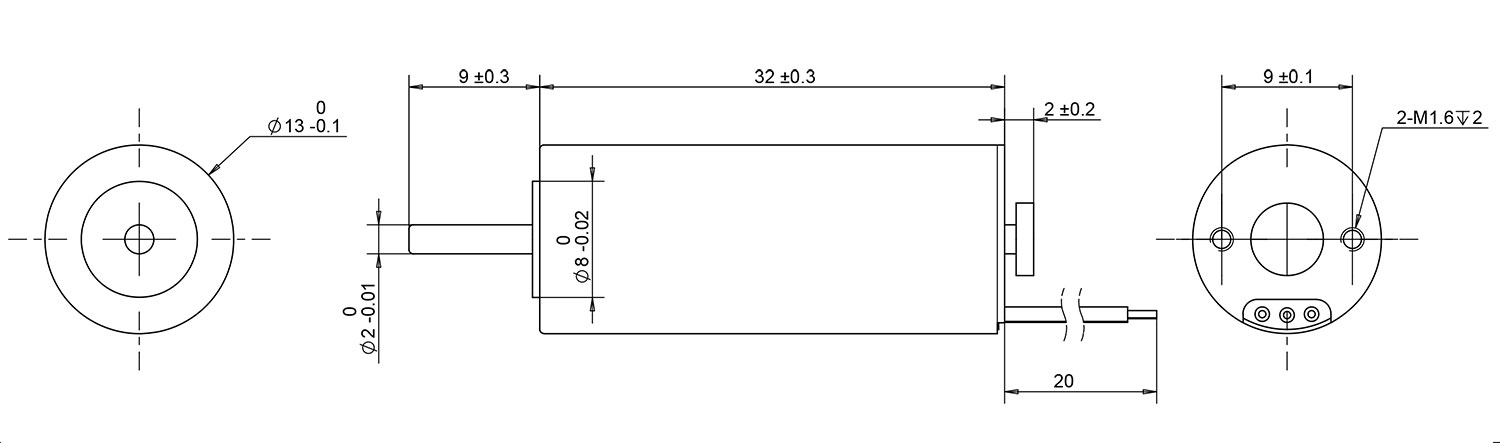

Outline Drawing
Remarks
Specifications for reference only.
Each model is available with or without Hall sensors.
Specifications, dimensions, and mounting holes can all be customized to your requirements.
