RIC-3660BL
Rated voltage:3V~48V(optional)
Appearance dimension: 36mm×60mm
Motor Specifications
| Model | RIC-3660BL-240600 | RIC-3660BL-360900 | RIC-3660BL-480120 | |
|---|---|---|---|---|
| Voltage | V | 24 | 36 | 48 |
| No-load Speed | rpm | 6000 | 9000 | 12000 |
| No-load Current | A | 0.19 | 0.2 | 0.23 |
| Rated Speed | rpm | 5055 | 8125 | 11236 |
| Rated Current | A | 5.2 | 4.85 | 4.29 |
| Rated Torque | g.cm | 1920 | 1800 | 1600 |
| Stall Current | A | 32 | 46 | 64 |
| Stall Torque | g.cm | 12300 | 18300 | 24800 |

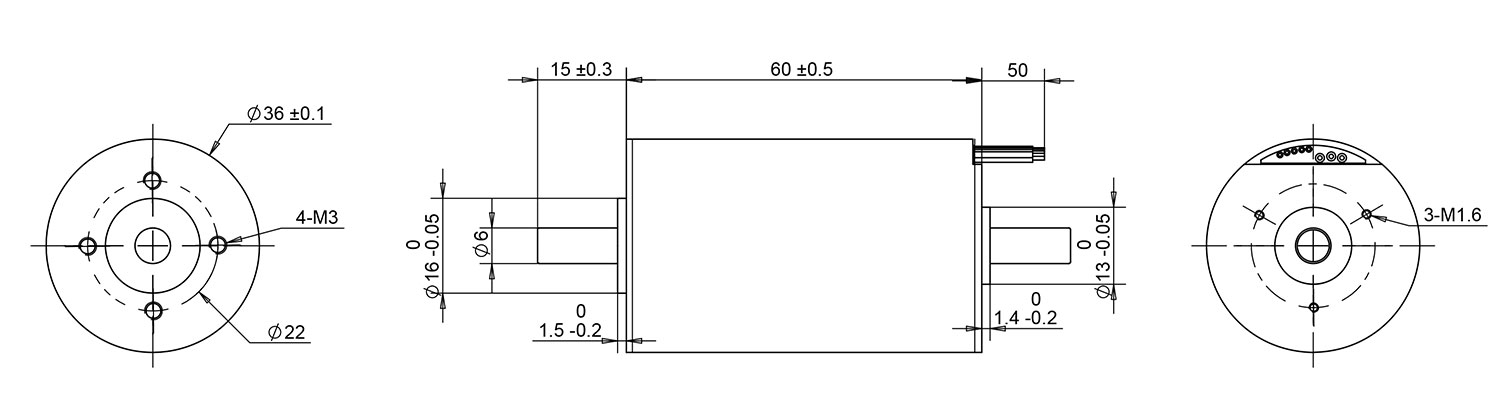

Outline Drawing
REMARKS
Specifications, shaft dimensions, screw holes, connector, gears and other components can be customized to meet customer specific requirements.
