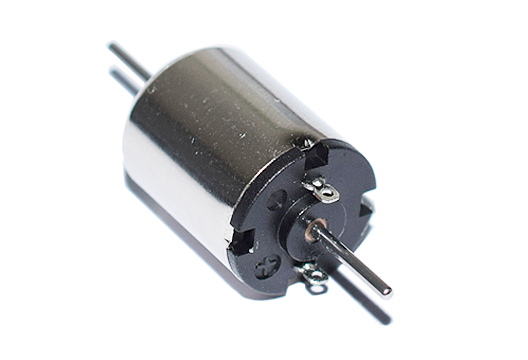

RIC-1215DT
Rated Voltage: 3V ~24V(Customizable upon request)
Appearance dimension: 12mm diameter , 15mm body length.
Options: Specifications, Shaft length, Screw holes.
Applications: train model, remote control hobby products, small household appliances, etc.
Motor specifications
| Model | RIC-1215DT-120150 | RIC-1215D-074200 | RIC-1215DT-074300 | RIC-1215DT-060230 | |
|---|---|---|---|---|---|
| Voltage | V | 12 | 7.4 | 7.4 | 6 |
| No-load speed | rpm | 15000 | 20000 | 30000 | 23000 |
| No-load current | mA | 10 | 35 | 35 | 50 |
| Rated speed | rpm | 12000 | 16900 | 25500 | 20200 |
| Rated current | mA | 77 | 320 | 350 | 260 |
| Rated torque | g.cm | 5 | 5.1 | 7 | 5 |
| Stall current | A | 0.337 | 0.9 | 2.11 | 1.76 |
| Stall torque | g.cm | 25 | 33 | 48 | 41 |
Outline Drawing

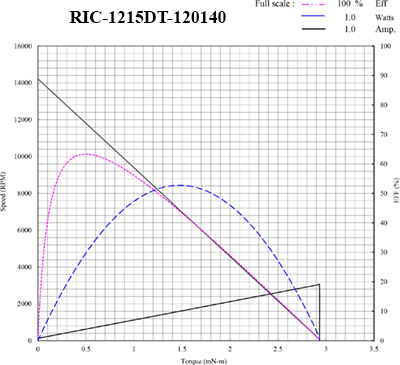

Performance Curves
Remarks
Specifications for reference only.
Specifications, shaft dimensions, mounting holes, connectors, gears, and other components can be customized to meet customers’ specific requirements.
Prototype samples are available for customer evaluation and approval; lead time depends on final specifications.
