RIC-1220DT
Rated Voltage:3V ~ 24V(Customziable upon request);

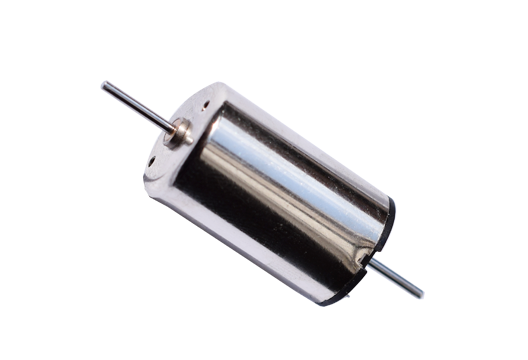

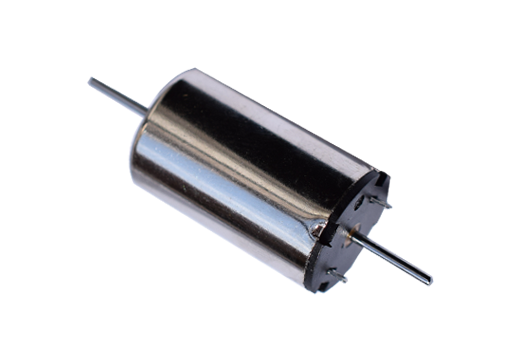

Compact coreless DC motor (12mm×20mm) with high power density, ultra-lightweight design, high torque, low-voltage start, low inertia, and stable performance.
Appearance dimension: 12×20mm;
Applications:Premium model,remote control hobby products, small household appliances,
Motor specifications
| Model | RIC-1220DT-120120 | RIC-1220D-120190 | |
|---|---|---|---|
| Voltage | V | 12 | 12 |
| No-load speed | rpm | 12000 | 19100 |
| No-load current | mA | 10 | 13 |
| Rated speed | rpm | 9000 | 17200 |
| Rated current | mA | 240 | 150 |
| Rated torque | g.cm | 20 | 10 |
| Stall current | A | 0.87 | 1.5 |
| Stall torque | g.cm | 80 | 100 |
Outline Drawing
Performance Curves
Remarks
Specifications for reference only.
Specifications, shaft dimensions, mounting holes, connectors, gears, and other components can be customized to meet customers’ specific requirements.
Prototype samples are available for customer evaluation and approval; lead time depends on final specifications.
