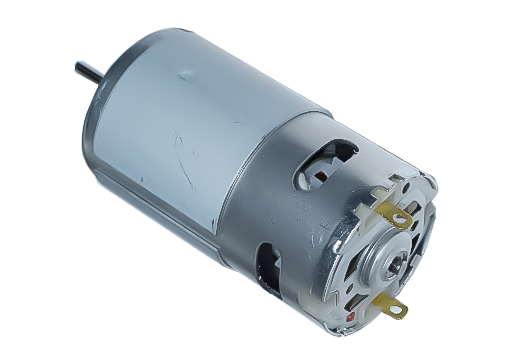

RS-560PH
Voltage:3V-24V
Application:Cordless power tools, air pumps, door closers, ride‑on cars, RC models, and small automation devices.
Motor specifications
| Model | Voltage | No-load | Rated Load | Stall | |||||
|---|---|---|---|---|---|---|---|---|---|
| Speed | Current | Speed | Current | Torque | Output | Current | Torque | ||
| VDC | rpm | A | rpm | A | g.cm | W | A | g.cm | |
| RS-560PH-8022 | 12 | 19000 | 1.3 | 16960 | 10.8 | 500 | 93 | 71.8 | 4000 |
| RS-560PH-2770 | 24 | 6100 | 0.15 | 5280 | 0.91 | 300 | 15.8 | 6 | 2200 |
Outline Drawing
Performance Curves
Remarks
Specifications, shaft dimensions, mounting holes, connectors, gears, and other components can be customized according to customer requirements.
