RS-555PH

Voltage:3V-24V

Application:Vacuum Cleaner/ Office Automation Equipment / Household Appliance/ Air Compressor

Motor Specifications

Model Voltage At No-Load At Maximum Efficiency At Stall
Speed Current Speed Current Torque Output Current Torque
V rpm A rpm A g.cm W A g.cm
RS-555PH-29150 12 3400 0.14 2900 0.78 240 7.1 4.4 1600
RS-555PH-3262 12 4600 0.2 3900 1.1 210 8.4 6.11 1380
RS-555PH-20115 24 5000 0.096 4240 0.526 212 8.44 2.88 1370
RS-555PH-2983 24 6600 0.16 5800 1.15 370 22.3 8 3500
RS-555PH-6532 12 16000 0.9 14300 7.8 480 70.4 65.8 4510
RS-555PH-7512 7.2 14600 1.45 12600 10.2 400 51.7 65.3 2920
RS-555PH-24135 24 3800 0.12 3374 0.32 163 5.65 3.41 2097

Outline Drawing

rs-555ph drawing

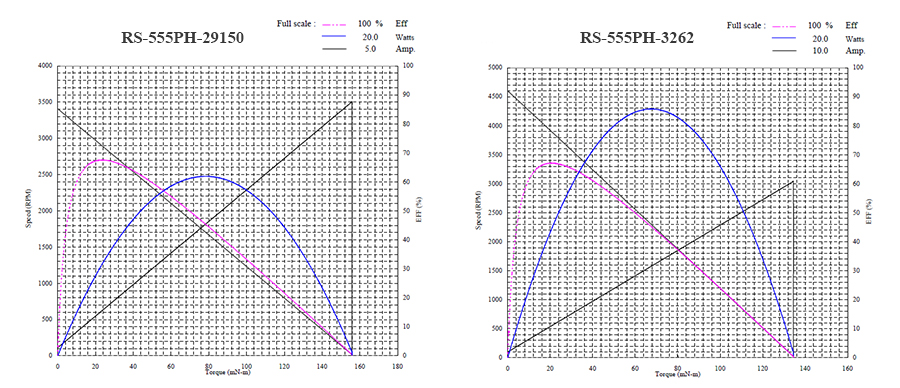

Performance Curves

rs 555 dc micro brushed motor

REMARKS

Specifications, shaft dimensions, screw holes, connector, gears and other components can be customized to meet customer specific requirements.
