Rated voltage:1V – 12V;

Application :medical device ,Massgaer;

Options ; wire length, counter weight, specification, connector.

Motor Specifications

Model RIC-1013V-013120 RIC-1013V-030800
Rated Voltage V 1.3 3
Rated Speed rpm 12000 8000
Rated Current mA 500 90
Start Voltage V 0.8 1
Stall Current mA 1200 280
Terminal Resistance Ω 1.2 10.6

Outline Drawing

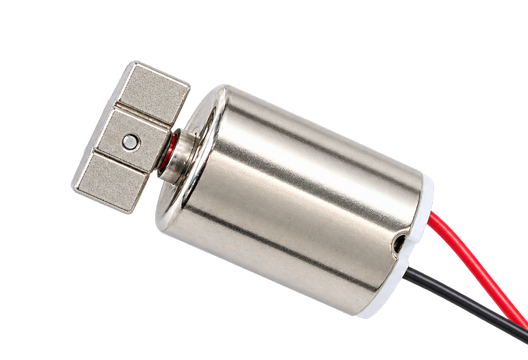

1013 vibration motor


Specifications, shaft dimensions, screw holes, connector, gears and other components can be customized to meet customer specific requirements.
