RIC-1013DT
Rated Voltage: 3V ~ 24V(customizable upon request)

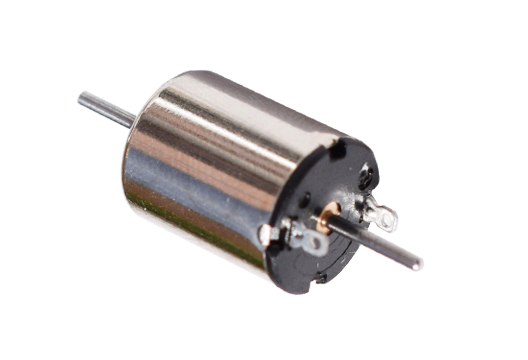

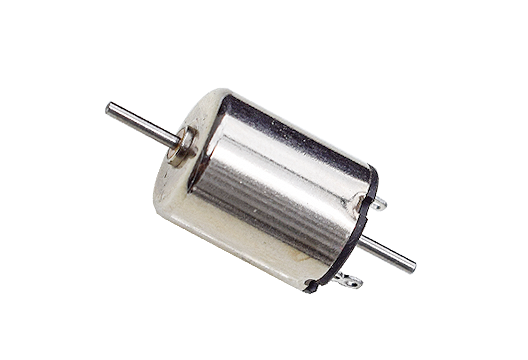

10×13mm dual‑shaft coreless DC motor with precious‑metal brushes and a short‑body design. Engineered for high RPM and fast electrical response, it’s optimized for scale model locomotive traction and model railway drivetrains, delivering smooth high‑speed performance and precise control in compact systems.
Appearance Dimension: 10mm × 13mm
Motor specifications
| Model | RIC-1013DT-120220 | |
|---|---|---|
| Voltage | V | 12 |
| No-load speed | rpm | 21500 |
| No-load current | mA | 15 |
| Rated speed | rpm | 16000 |
| Rated current | mA | 60 |
| Rated torque | g.cm | 2.5 |
| Stall current | A | 0.18 |
| Stall torque | g.cm | 9.7 |
Outline Drawing
Performance Curves
Remarks
Specifications for reference only.
Specifications, shaft dimensions, mounting holes, connectors, gears, and other components can be customized to meet customers’ specific requirements.
Prototype samples are available for customer evaluation and approval; lead time depends on final specifications.
