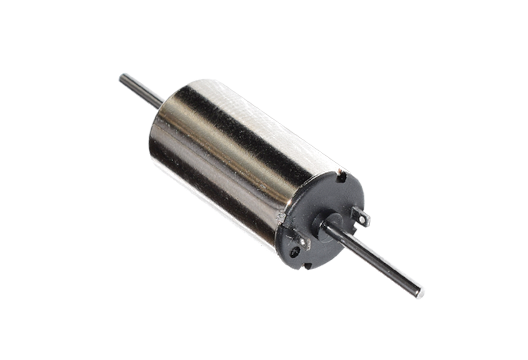

RIC-816DT
Voltage : 3V -24V(Customize);
High efficiency & performance 5 poles small coreless motor
Dual bearings, low vibration , low noise and long lifetime.
Appearance dimension: 8mm diameter,16mm body length.
Application:Personal care equipment／Toys/Models／Aeromodelling／ HO scale model train engines / Locomotives
Options: Connector, gearbox.
Motor Specifications
| Model | RIC-0816D-1300 | RIC-816DT-1800 | RIC-0816D-090145 | |
|---|---|---|---|---|
| Voltage | V | 12 | 12 | 9 |
| No-load Speed | rpm | 13500 | 18000 | 14500 |
| No-load Current | mA | 5 | 7 | 8 |
| Rated Speed | rpm | 11500 | 14500 | 10000 |
| Rated Current | mA | 30 | 95 | 100 |
| Rated Torque | g.cm | 2.5 | 5 | 5 |
| Stall Current | A | 0.188 | 0.4 | 0.295 |
| Stall Torque | g.cm | 16.6 | 24.3 | 16 |

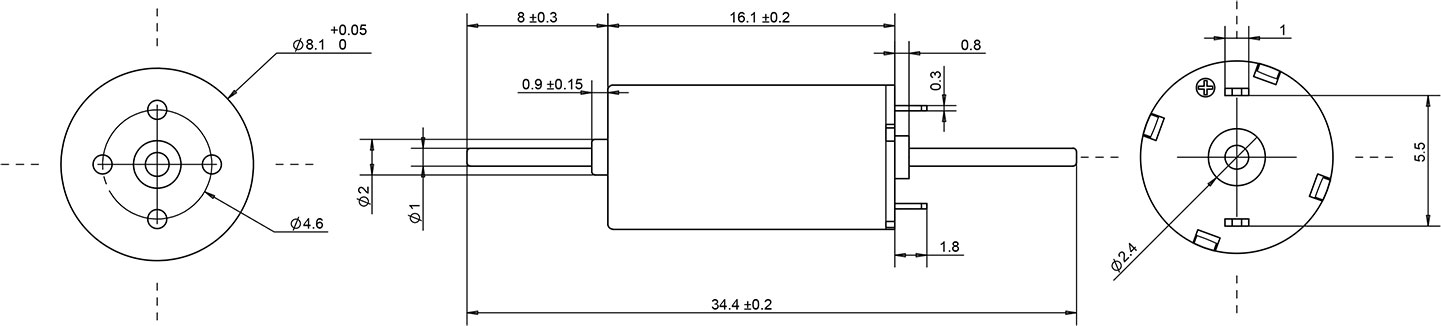

Outline Drawing
Performance Curves
