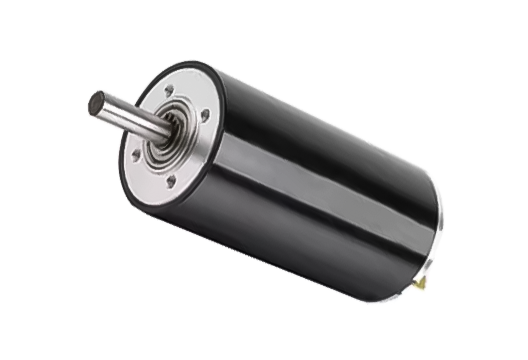

RIC-50108D
Rated Voltage:3V~48V(Customizable)
Motor Specifications
| Model | RIC-50108D-300032 | |
|---|---|---|
| Voltage | V | 30 |
| No-load Speed | rpm | 3200 |
| No-load Current | mA | 50 |
| Rated Speed | rpm | 3090 |
| Rated Current | mA | 1487 |
| Rated Torque | g.cm | 1295 |
| Stall Current | A | 45 |
| Stall Torque | g.cm | 40500 |

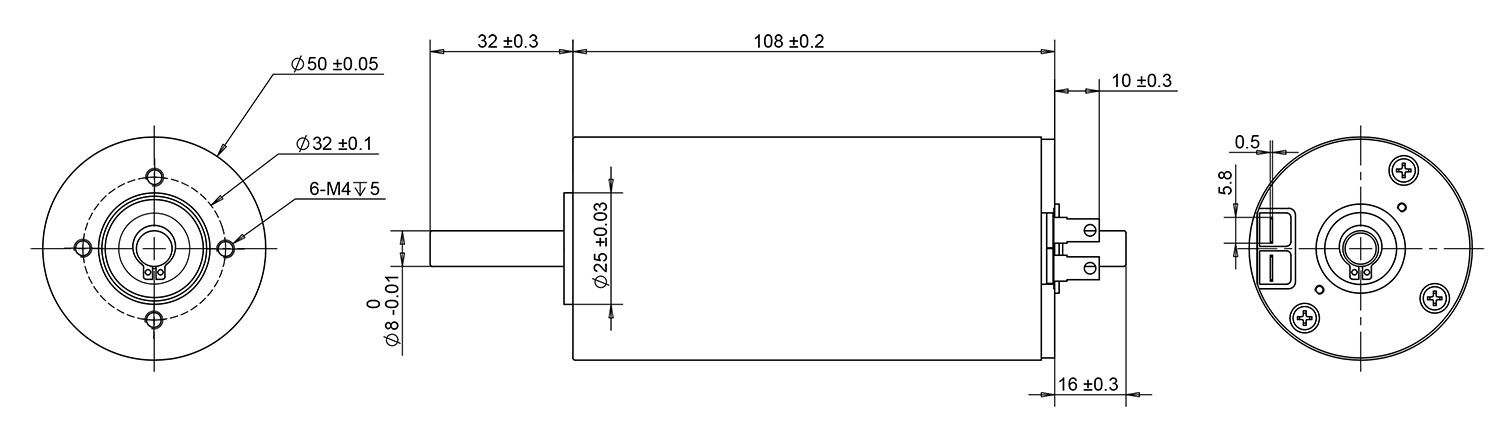

Outline Drawing
REMARKS
Specifications, shaft dimensions, screw holes, connector, gears and other components can be customized to meet customer specific requirements.
