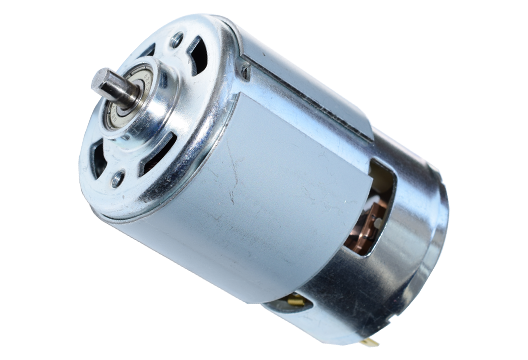

RS-775PH
Voltage:3V-48V（Customizable upon request);
High‑power RS‑775PH brushed DC motor engineered for heavy‑load performance, delivering strong torque, high‑speed capability, stable continuous output, and enhanced durability with optional ball‑bearing or sleeve‑bearing configurations. Compatible with planetary gearboxes for increased torque multiplication and precision motion control.
Application:Electric drills, impact drivers, cutting tools, air pumps, oil pumps, garden tools, office automation equipment, RC propulsion units, high‑power DIY mechanical projects, household appliances, water pumps, fans.
Motor specifications
| Model | Voltage | No-load | Rated Load | Stall | |||||
|---|---|---|---|---|---|---|---|---|---|
| Speed | Current | Speed | Current | Torque | Output | Current | Torque | ||
| VDC | rpm | A | rpm | A | g.cm | W | A | g.cm | |
| RS-775PH-4040 | 12 | 5000 | 0.55 | 4200 | 2.95 | 460 | 19.8 | 15.6 | 2880 |
| RS-775PH-3848 | 24 | 8600 | 0.55 | 7200 | 3.3 | 700 | 52.3 | 17.4 | 4300 |
| RS-775PH-8015 | 18 | 19500 | 2.7 | 16800 | 18.2 | 1500 | 258 | 115 | 10800 |
| RS-775PH-6920 | 24 | 19000 | 2.3 | 16400 | 15 | 1580 | 265 | 95 | 11200 |
| RS-775PH-4930 | 28 | 15000 | 1 | 13142 | 7.07 | 1175 | 145.9 | 50 | 9496 |
| RS-775PH-3580 | 24 | 4570 | 0.21 | 4160 | 1.49 | 616 | 25 | 9.5 | 5000 |
Outline Drawing
