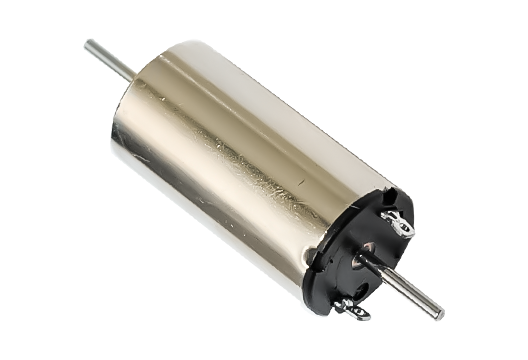

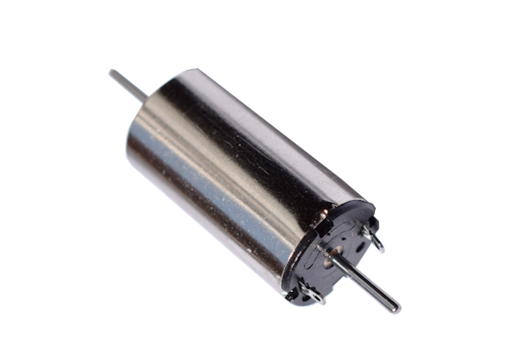

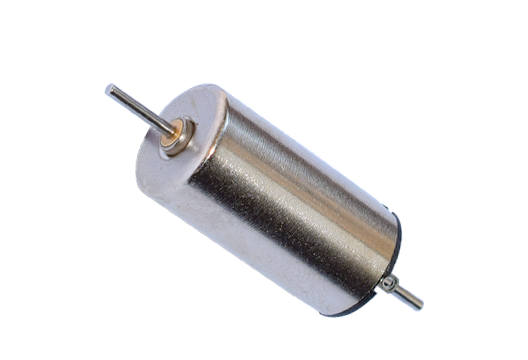

RIC-1020DT
Voltage: 3V – 24V;
Compact size high torque coreless motor
Appearance size: 10×20 mm
Application:Toys /models/ precision instruments;
Motor Specifications
| Model | RIC-1020D-120140 | RIC-1020DT-120160 | RIC-1020DT-120190 | RIC-1020DT-120250 | |
|---|---|---|---|---|---|
| Voltage | V | 12 | 12 | 12 | 12 |
| No-load Speed | rpm | 14000 | 16000 | 19200 | 25800 |
| No-load Current | mA | 9 | 9 | 15 | 25 |
| Rated Speed | rpm | 10500 | 12600 | 15500 | 21500 |
| Rated Current | mA | 115 | 155 | 180 | 230 |
| Rated Torque | g.cm | 10 | 10 | 10 | 10 |
| Stall Current | A | 0.45 | 0.65 | 0.83 | 1.6 |
| Stall Torque | g.cm | 40 | 47 | 50 | 65 |

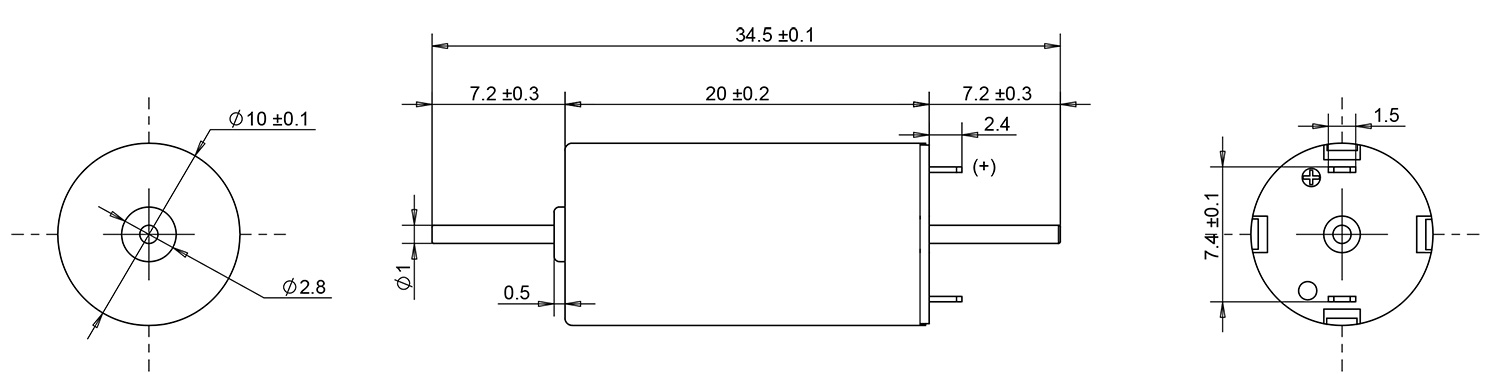

Outline Drawing

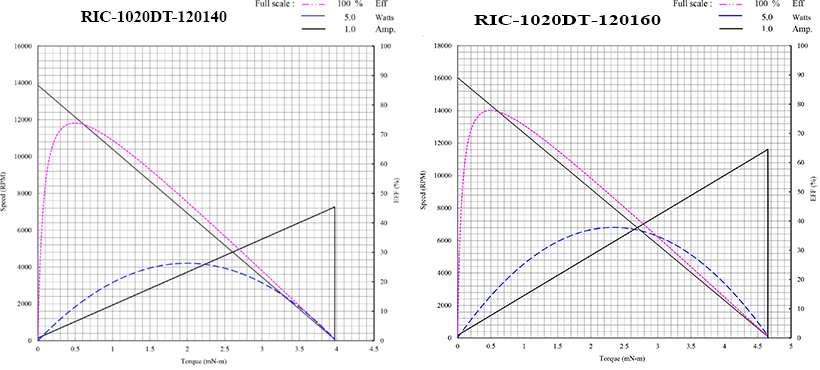

Performance Curves
