RS-997PH
Voltage:3V-24V;
Application:Lawn mowers, robotics and automation systems, DIY mechanical projects, household appliances, medical devices, high‑speed drone applications, RC models and boats, cordless power tools, bilge pumps, air pumps, vacuum cleaners.
Motor specifications
| Model | Voltage | No-load | Rated Load | Stall | |||||
|---|---|---|---|---|---|---|---|---|---|
| Speed | Current | Speed | Current | Torque | Output | Current | Torque | ||
| VDC | rpm | A | rpm | A | g.cm | W | A | g.cm | |
| RS-997PH-3760 | 27 | 3500 | 0.34 | 2940 | 1.8 | 1078 | 33.3 | 9.1 | 6400 |
| RS-997PH-7009 | 12 | 9800 | 1.95 | 8808 | 17.32 | 1713 | 155 | 153.8 | 16930 |
| RS-997PH-6317 | 12 | 5500 | 1.3 | 4750 | 6.7 | 1200 | 58.5 | 40.9 | 8800 |

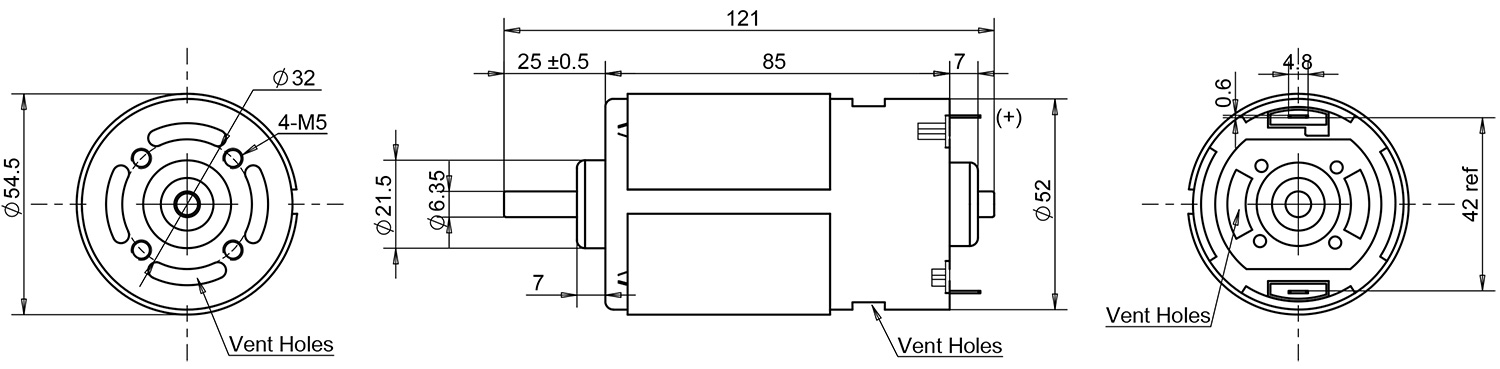

Outline Drawing

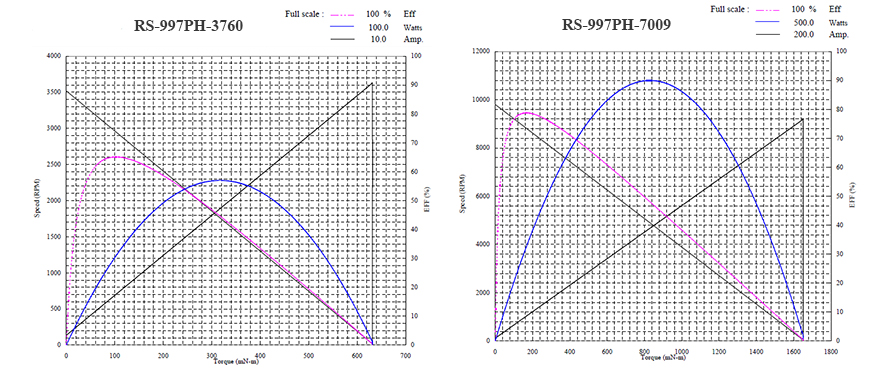

Performance Curves
Remarks
Specifications, shaft dimensions, mounting holes, connectors, gears, and other components can be customized according to customer requirements.
