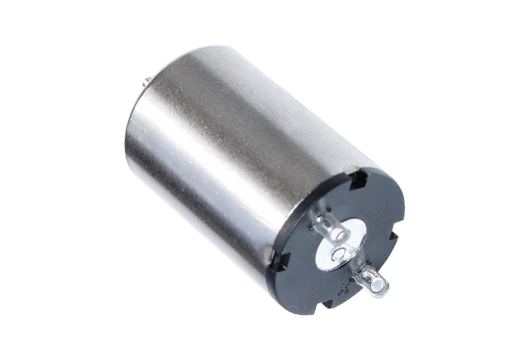

RIC-1625D
Voltage: 3V~ 24V(customizable upon request).
Appearance dimension: 16mm diameter, 25mm body length.
Applications: mini UAV’s, remote control hobby products, small household appliances, etc.
Motor specifications
| Model | RIC-1625D-240110 | RIC-1625D-050600 | RIC-1625D-060880 | RIC-1625D-120190 | |
|---|---|---|---|---|---|
| Voltage | V | 24 | 5 | 6 | 12 |
| No-load speed | rpm | 11300 | 6000 | 8800 | 18700 |
| No-load current | mA | 10 | 25 | 25 | 60 |
| Rated speed | rpm | 10400 | 5300 | 6300 | 15500 |
| Rated current | mA | 85 | 150 | 570 | 700 |
| Rated torque | g.cm | 15 | 10 | 35 | 38 |
| Stall current | A | 0.87 | 1.13 | 1.9 | 3.7 |
| Stall torque | g.cm | 175 | 87 | 123 | 220 |
Outline Drawing
Performance Curves
Remarks
Specifications for reference only.
Specifications, shaft dimensions, mounting holes, connectors, gears, and other components can be customized to meet customers’ specific requirements.
Prototype samples are available for customer evaluation and approval; lead time depends on final specifications.
